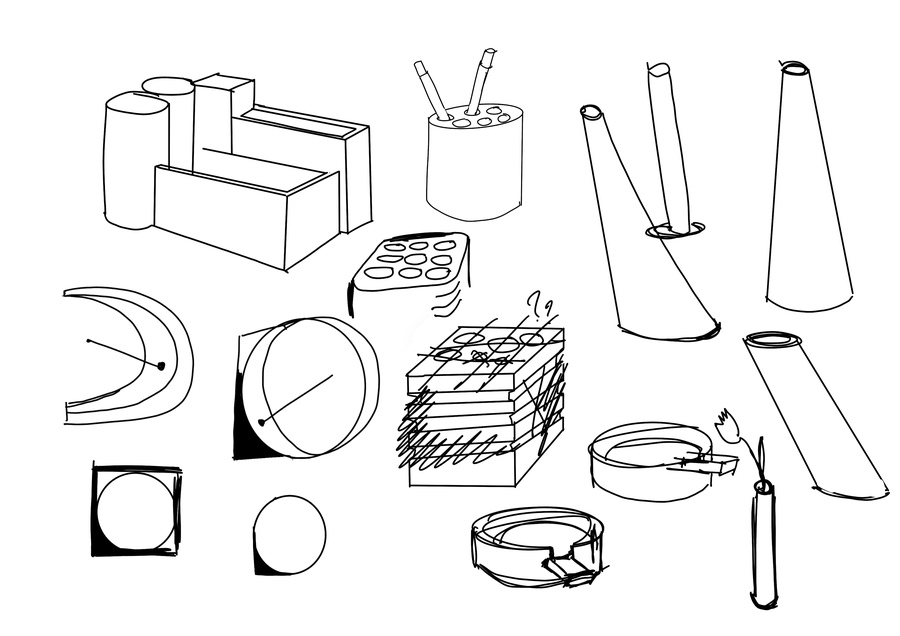

I began my work with simple sketches and drawings in Procreate, and the most successful examples follow.

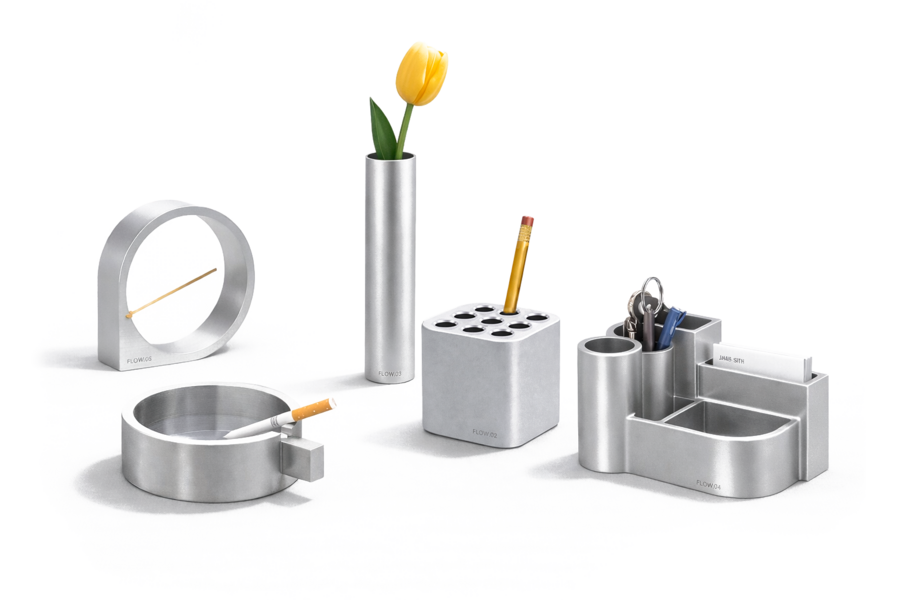

After creating sketches, I began uploading them to Chat GPT 5.2 to generate the visualizations I needed, supplementing the prompts with references to aluminum textures and examples of product photography.

After generating visualizations in ChatGPT 5.2, I refined them in Photoshop and created 3D models of the items in my series using Meshy.ai, subsequently checking and correcting errors in the resulting models through Meshinspector.

To conclude this creative project, I designed a poster for which I also generated a visualization using Chat GPT 5.2.

Programs: • Fusion 360 / Blender • Cura / PrusaSlicer

Tools: • FDM 3D Printer • Sandpaper Set P240 / P400 / P800 • Craft Knife • Pliers • Spray Primer/Filler • Matte Silver Paint • Acrylic Varnish

1. FLOW.01 Ashtray

Dimensions • Ø100 mm • Height 28 mm

Process

1. Modeling • In Fusion 360, create a cylinder measuring Ø100×28 mm. • Hollow out an inner bowl with a depth of 20 mm. • Add a side stop for the cigarette, chamfered at 45°.
2. Slicing • Layer height: 0.2 mm • Infill: 15% Gyroid • Supports: off
3. Printing • Orient the part bottom-down.
4. Post-processing • Trim support structures with a knife • Sanding: P240 → P800 • Primer → Paint → Varnish

2. FLOW.02 Pencil Holder

Dimensions • 65×65×65 mm • Holes Ø8–12 mm, depth 50 mm

Process

1. Modeling • Create a cube with a 5 mm fillet radius. • Drill holes at a 90° angle.
2. Slicing • 3 perimeters • 20% infill • Supports: off
3. Printing • Print base down.
4. Finishing • Sanding • Primer • Painting

3. FLOW.03 Vase

Dimensions • Height 220 mm • Ø40 mm

Process

1. Modeling • Cylinder with a wall thickness of 1.6 mm.
2. Slicing • Vase Mode • Infill 0% • Perimeters 4
3. Printing • Vertically.
4. Finishing • Light sanding • Spray paint

4. FLOW.04 Organizer

Dimensions • 180×120×90 mm

Process

1. Modeling • Block extrusion • Creating niches using Boolean cuts.
2. Slicing • Tree Supports • 15% infill
3. Printing • Base down.
4. Post-Processing • Removing supports • Sanding • Painting

5. FLOW.05 Incense Holder

Dimensions • Ø110 mm • Thickness 25 mm • Hole Ø2.5 mm at a 15° angle

Process

1. Modeling • Cut a 12 mm thick ring. • Add a hole for the incense stick.
2. Slicing • Supports: only from build plate • Layer height 0.16 mm
3. Printing • Print on the flat side down.
4. Post-Processing • Remove supports with pliers • Sanding
